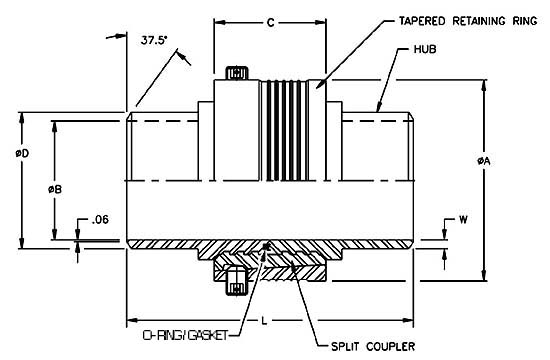

Compact Pipe Coupling
|
DUR O LOK® Materials
- Carbon steel
- Stainless steel - 304, 316, 321 and
- Other materials available on request.
- Material traceability available
|
DUR O LOK® Quality
- Designed to ASME Section VIII, ANSI B31.1 and ANSI B31.3
- BETE Fog Nozzle, Inc., manufacturer of Dur O Lok® is certified to ISO 9001 quality system
|
|
Please note that weight and dimensions information is approximate. Please call if you have questions.
DUR O LOK®/Flange - Weight and Dimension Comparison |
DUR O LOK® |
|
Weld Neck Flanges |
Pipe Size |
Pipe Schedule |
Overall Diameter (in.) |
Overall Length (in.) |
Approx Weight (lb.) |
|
Flange Class |
Flange OD (in.) |
Flange Assembly Length (in.) |
Flange Assembly Weight (lb.) |
|
1 1.25 |
80 80 |
2.5 2.85 |
3.50 3.50 |
1.99 2.61 |
|
2500 600 |
6.25 5.25 |
7.0 5.2 |
26.6 13.1 |
1.5 2 |
XXS 80 |
3.13 3.55 |
4 5 |
4.82 5.25 |
|
2500 2500 |
8 9.25 |
8.8 10.0 |
57.0 83.3 |
2.5 3 |
160 80 |
4.21 4.95 |
6.00 6.50 |
9.19 11.20 |
|
600 1500 |
7.5 10.5 |
6.2 9.2 |
38.0 102.5 |
3.5 4 |
80 160 |
5.45 5.95 |
7.00 7.50 |
13.64 20.54 |
|
600 2500 |
9 14 |
6.8 15.0 |
63.2 301.2 |
6 8 |
80 80 |
8.47 10.65 |
9.5 9.5 |
41.51 60.84 |
|
600 600 |
14 16.5 |
9.2 10.5 |
173.5 259.1 |
* Per appendix 24 of the 1998 ASME Code, Section VII, Div. I, maximum temperature: 400°F (204°C) with Viton(e) O-ring, 450°F (232°C) with silicone rubber O-ring. Gaskets with higher temperature ratings available.
